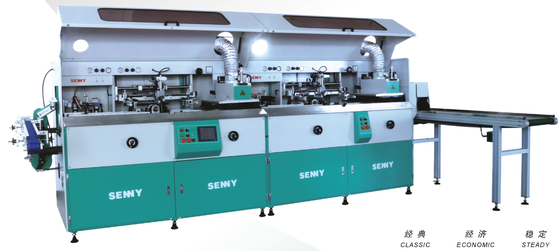

Fully Automatic 4 Color Screen Printing Machine CE Certified
Dettagli:
| Luogo di origine: | Dongguan China |
| Marca: | SENNY |
| Certificazione: | CE |
| Numero di modello: | SL1688 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1pc |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Confezione in compensato |
| Tempi di consegna: | 45 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 10 pc/mese |
|
Informazioni dettagliate |
|||
| Grado automatico: | Completamente automatico | Colori stampati: | 4 colori |
|---|---|---|---|
| Garanzia: | 1 anno | Tipo di targa: | Stampa a schermo |
| Qualità di stampa: | Alta resistenza | Servizi post-vendita: | Video o in linea |
| Evidenziare: | Schermo di bottiglia certificata CE, 4 colori e servo azionamento di controllo digitale | ||
| Evidenziare: | 4 color automatic screen printing machine,fully automatic labeling machine,screen printing machine with warranty |
||
Descrizione di prodotto
Machine Features

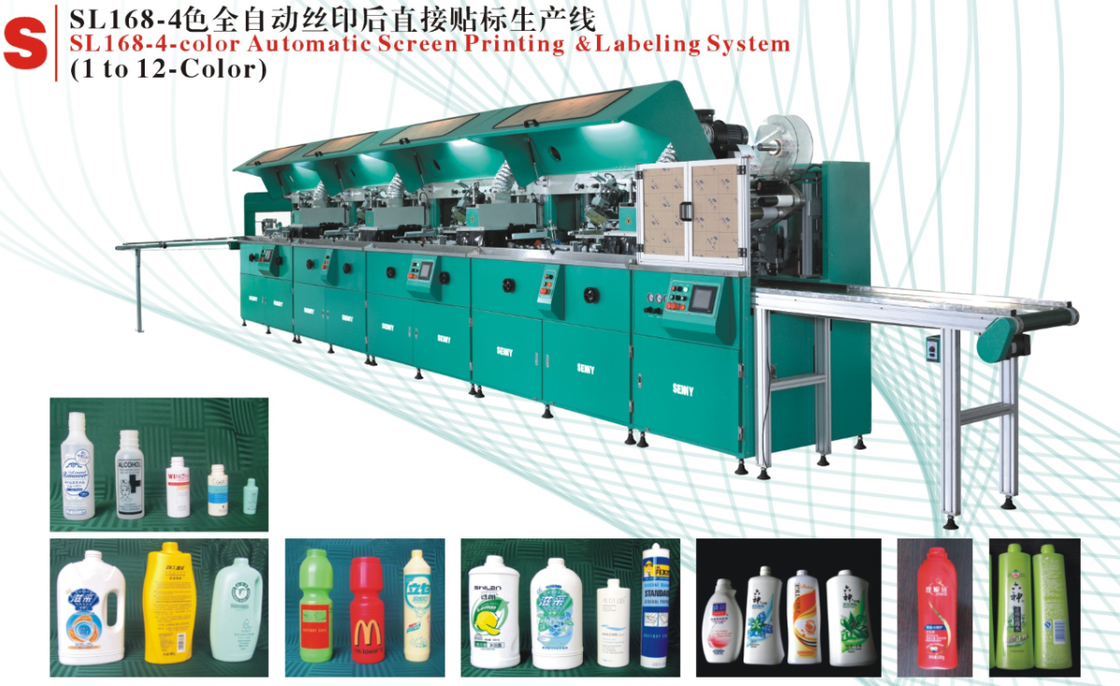

- The machine is suitable for screen printing of various colors of UV ink, hot stamping, labeling and other decorations on round, oval, square and other shapes of plastic bottles.
- The machine has perfect transmission design, stable running, fast changeover, easy operation and it meets CE certification.
- The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
- The machine uses a highly customizable modular structure, which can be connected in a straight line to be a 1-8 color printing machine.
- The standard configuration of the machine is a screen printing and UV curing module, and the screen printing function can be selected to be interchangeable with hot stamping or labeling functions.
- The machine can be chosen to connect with independent hot stamping, labeling, quality inspection and other modules to combine into a multi-functional printing machine.
Optional Configuration
- Plasma surface treatment function •Hot stamping function. •Labeling function. •LED-UV curing function
Technical Parameters
| Model Machine | SL1666 | SL1688 |
|
Printing Speed
|
up to 85pcs/min | up to 85pcs/min |
|
Round Bottle Diameter
|
20-100mm | 20-100mm |
|
Oval Bottle Radius
|
25-250mm | |
|
Oval/Flat Bottle Width
|
20-130mm | |
|
Bottle Height
|
50–300mm |
50–300mm
|
| Max Length | 300mm | 300mm |
| Max Hight | 250mm | 250mm |
Printing your vision
