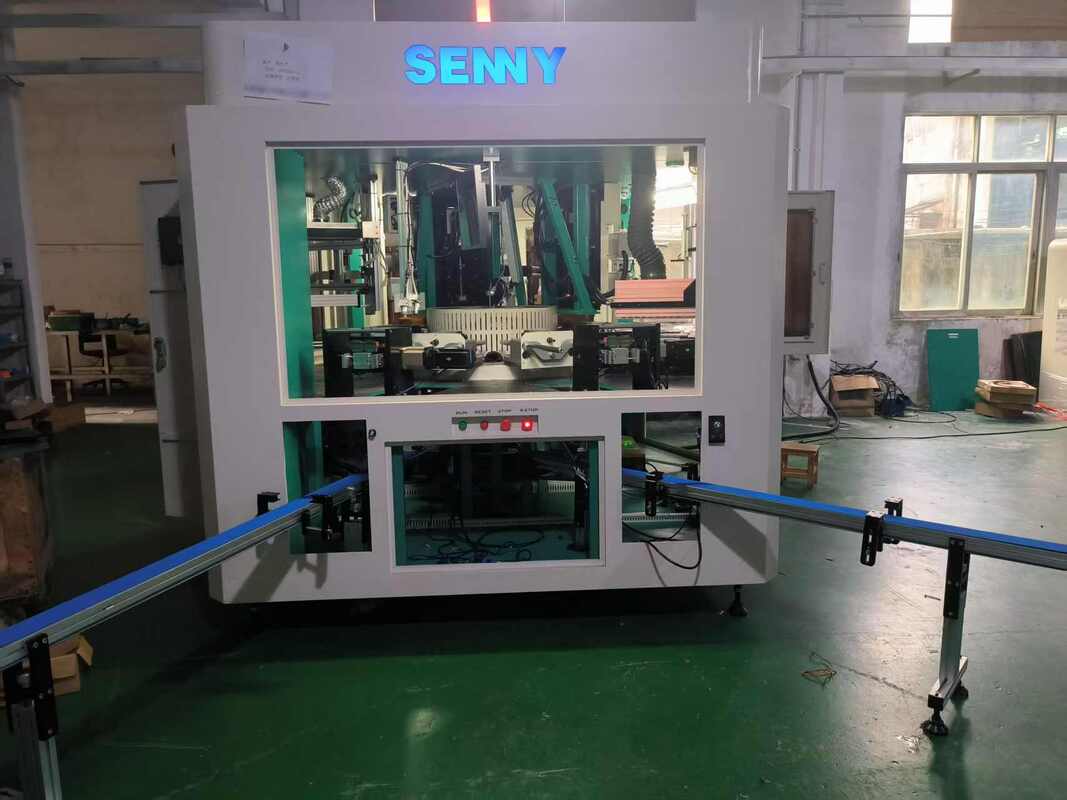

5 Color CNC Bottle Screen Printer Full Servo Container Screen Printer 60pcs/Min
Dettagli:
| Luogo di origine: | Dongguan Cina |
| Marca: | SENNY |
| Certificazione: | CE SGS |
| Numero di modello: | SRS588 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pezzo |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | pacchetto di compensato |
| Tempi di consegna: | 45 giorni |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | 10 pezzi /mese |
|
Informazioni dettagliate |
Descrizione di prodotto
5 Color CNC Bottle Screen Printer Full Servo Container Screen Printer 60pcs/Min
Production speed and number of colours are indicators of machine performance.
High performance machines must also feature:
• Capabilities for loading and orientating complex shaped jars or bottles,
• Full CNC-control for maximising printing areas on complex shaped items,
• Quick change features and machine pre-setting for shortening changeover times,
• ln-line print inspection for inspecting each item.
Machine Features
Each fixture is driven by its own servomotor, an essential requirement for CNC-control of the printing movements.
Quick change fixtures reduce changeover times.
Each machine features a solidly-built welded frame, ensuring smooth, vibration free operation even at high printing speeds. The surfaces that are crucial for ensuring that screens are parallel with the fixtures are precision machined.
Optional Configuration
-
Product lying flat feeding and discharging function.
-
Plasma surface treatment function.
-
Hot stamping function.
-
Bottle bottom visual registration function.
-
Bottle body visual registration function.
-
LED-UV curing system.
-
Finished product quality inspection function
Technical Parameters
- Work Station: 12
- Printing Speed: Up to 60pcs/min
- Diameter at 360 Degree: 13–100mm
- Bottle Height: 20–320mm
- Printing Length: 300mm
- Printing Height: 200mm
- Printing Accuracy: ±0.1mm
This CNC rotary machine can be 2 to 6 colors.
Screen printing UV curing
Applications
SRS588 CNC Container Automatic UV Screen Printing Machine is an automatic UV screen printing machine for containers. The printing scope is very wide and it can be used for screen printing of various containers such as round bottles, flat cans, square jars and irregularly shaped containers, etc.
