8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min
Dettagli:
| Luogo di origine: | Dongguan China |
| Marca: | SENNY |
| Certificazione: | CE SGS |
| Numero di modello: | SRS826 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1pc |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Pacchetto compensato |
| Tempi di consegna: | 45 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 10 pezzi/mese |
|
Informazioni dettagliate |
|||
| Numero di modello: | SRS826 | Colore di stampa: | 2 colori |
|---|---|---|---|
| Tipo di piastra: | stampatrice dello schermo | Garanzia: | 1 anno |
| Servizi post-vendita: | Video o on-line | Dettagli dell'imballaggio: | Pacchetto compensato |
Descrizione di prodotto

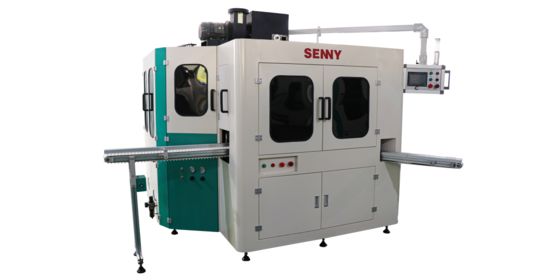

8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min
Machine Feature
- The machine is suitable for screen printing of various colors of UV ink,hot stamping,varnishing and other decorations on plastic soft tubes.

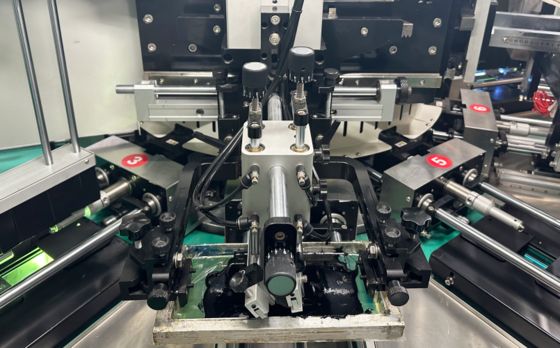

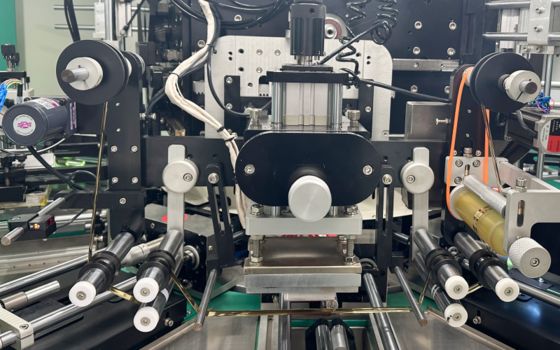

- The machine adopts an integrated turntable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as ± 0.1 mm.
- The machine is driven by digital control servo motor to realize 360-degree printing of products,equipped with remote management and service functions(industry 4.0).
- The machine adopts well-known brand electrical components, PLC control system,easy-to-use touch screen and wireless tablet operation,with reliable performance.
Optional Configuration
- Unscrambling & feeding machine. Hot stamping function. Plasma surface treatment function.
- Visual registration function. LED-UV Curing function. Finished product quality inspection function.
Technical Parameters
| Machine Model | SRS826 |
| Work Station | 8 |
| Printing Speed | Up to 80 pcs/min |
| Soft Tube Diameter | 15-75mm |
| Soft Tube Height | 60-220mm |
| Max.Printing Length | 220mm |
| Max.Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Printing Sample
About us:
In 2020, Shenli provided Russian customers with a CNC 1-color glazing + 3-color screen printing UV curing production line for hoses. Since then, Shenli has been capable of offering customers the production capacity of various CNC multi-color screen printing, gold stamping and quality inspection machines for hoses.
