1-8 Color Bottle Screen Printer With IR Curing For Plastic Bottles And Cans Up To 40pcs/Min
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Senny |
| Certificazione: | CE SGS |
| Numero di modello: | SLS1888-IR5312 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Pacchetto compensato |
| Tempi di consegna: | Un mese |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 10 pezzi/mese |
|
Informazioni dettagliate |
|||
| Grado automatico: | Completamente automatico | Tipo di piastra: | Schermo stampante |
|---|---|---|---|
| Colori stampati: | Da 1 a 12, può essere personalizzato | Stampa Durabilità: | Alta durata |
| Garanzia: | 1 anno | Servizio post-vendita: | Video o on-line |
| Termini di pagamento: | T/t | Tempi di consegna: | 45 giorni |
| Certificazione: | CE SGS | ||
| Evidenziare: | 1-8 color bottle screen printer,IR curing screen printer for plastic bottles,high-speed bottle screen printer 40pcs/min |
||
Descrizione di prodotto

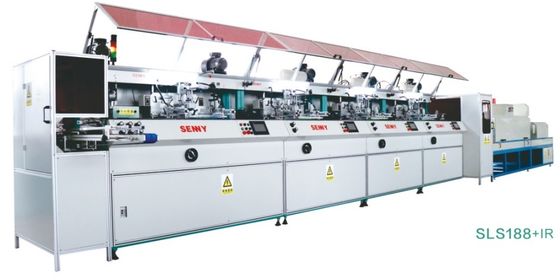

1-8 Color Bottle Screen Printer With IR Curing For Plastic Bottles And Cans Up To 40pcs/Min
Machine Features:
- This machine is suitable for screen-printing IR inks of various colors on plastic bottles with shapes such as round, oval, and square.
- The machine adopts a digitally controlled servo motor to drive products for 360-degree printing, enabling Industry 4.0 remote management and services. This allows for real-time monitoring of equipment operation status, remote parameter adjustment, and timely troubleshooting, greatly improving production management efficiency and reducing maintenance response time.
- It is equipped with electrical components from well-known brands, along with an easy-to-use touchscreen operation and a PLC control system, ensuring reliable performance. The user-friendly interface makes operation simple even for new operators, while the stable control system guarantees consistent printing quality and minimizes operational errors.
- Featuring a highly customizable modular structure, the machine can be linearly connected to form a 1-8 color printing press. This modular design not only facilitates flexible configuration according to different production needs but also simplifies future upgrades and expansions, allowing enterprises to adjust production capacity and functions in a cost-effective manner.
- The standard configuration of the machine includes screen-printing and IR curing modules. It can also be optionally connected with independent modules such as hot stamping, labeling, and quality inspection to form a multi-functional printing press. This integration of multiple processes enables one-stop production from printing to post-processing, significantly enhancing overall production efficiency and product added value.
- After the product printing is completed, it is discharged by a manipulator, arranged in an orderly manner, and enters a constant-temperature drying tunnel furnace to fully cure the ink. This automated discharging and curing process ensures uniform ink curing, improves product stability, and avoids quality issues caused by manual handling.
Technical Specifications:
| Specification/Model | SLS1888-IR5312 |
| Printing speed | Up to 40pcs/min |
| Diameter of bottle | 20–160mm |
| Height of bottle | 50–300mm |
| Printing length | 300mm |
| Printing height | 250mm |
Applications
1. Wide Application Scope
Suitable for surface brushing treatment of various plastic containers, including:
Material types: PET bottles, PE bottles, PP bottles, PVC bottles;
Shapes & scenarios: Round, oval, square bottles/cans (e.g., feed bottles, water bottles).
2. Servo-Driven Printing Advantage
Supports printing of multiple colors of thermosetting inks;With digital control, it enables easy 360° full-circumferential printing for consistent and precise results.
3. Modular & Scalable Design
Each module integrates two core functions:
Independent screen printing;
Hot-air surface drying;
Modules can be linearly combined to form an 8-color integrated production line, adapting to diverse output needs.
4. Post-Printing Curing Process
After printing, finished products are conveyed to an oven (max temperature: 120°C);Baked by a robot for 10 minutes to achieve complete curing of inks, ensuring durability.

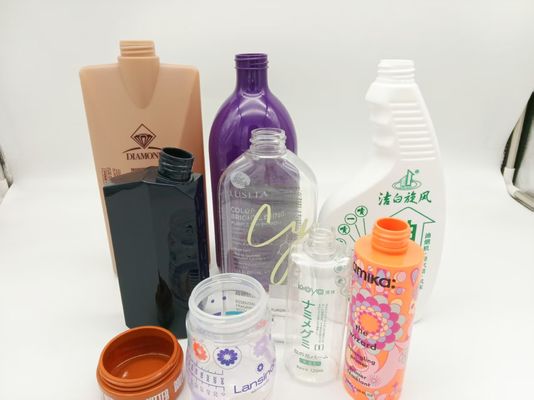

Printing sample
Support and Services:
We provide comprehensive technical support and service guarantees for cap printing machines. Our professional team consists of experienced and well-trained technicians, ready to solve any problems that arise during the operation of your machine. Our support services cover various aspects, including troubleshooting, parts replacement, equipment maintenance, and software upgrades. We also offer on-site repair and maintenance services to ensure that the equipment can be properly handled on-site. In addition, we have a complete range of replacement parts and supplies to meet your various needs.
We always take pride in providing excellent customer service. Our team is on call 24/7 to answer your questions and handle issues at any time. We are committed to delivering high-quality services and fully ensuring your satisfaction.
If you have any questions or need assistance, please feel free to contact us. We look forward to supporting your bottle cap printing machine!
