High-Speed Caps Printing Machine For Seamless Integration With Production Lines
Dettagli:
| Luogo di origine: | Dongguan China |
| Marca: | Senny |
| Certificazione: | CE,SGS |
| Numero di modello: | SOC2168 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1pc |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Avvolgimento cinematografico |
| Tempi di consegna: | 45 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 10 pezzi/mese |
|
Informazioni dettagliate |
|||
| Grado automatico: | Completamente automatico | Durata della stampa: | Alta durata |
|---|---|---|---|
| Cercificazione: | Ce | Termini di pagamento: | T/t |
| Colore stampato: | 2 colori | Imballaggi particolari: | Pacchetto compensato |
| Evidenziare: | high-speed caps printing machine,caps printing machine for production lines,seamless integration caps printing machine |
||
Descrizione di prodotto

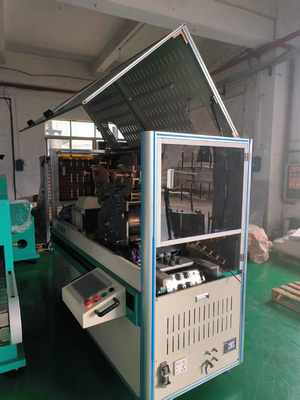

High-Speed Caps Printing Machine For Seamless Integration With Production Lines
PRODUCT
Features
Speed & Capacity FlexibilitySteplessly adjustable printing speed to match production cycles. Adapts to diverse needs – from low-speed proofing to high-speed mass production – and integrates seamlessly with cap injection machines or full cap production lines.
Flexible Coloring & Precision AlignmentModular design with 1-2 or 1-4 color unit options. Equipped with high-precision electronic shaft registration (±0.05mm accuracy) for sharp, ghost-free complex patterns and fine text.
Controllable Ink LayersEach printing unit has an independently adjustable, precision ink metering system. Stepless control of ink film thickness (from ultra-thin to heavy coverage) ensures consistent color saturation.
Smart Operation & Easy MaintenanceElectronic reverse operation simplifies setup, cleaning, and troubleshooting. Removable, ergonomic console. User-friendly HMI with large color touchscreen for easy parameter setting and monitoring.
Stable Electrical & Control SystemsUses premium components (Siemens, Omron, Schneider, etc.). High-performance PLC-based control integrates HMI and servo technology for precise, reliable operation. Optimized design ensures low failure rates and long service life.
Technical parameters
| Machine Model | SOC2168 | SOC4328 |
| Cap Diameter | 28mm-38mm | 28mm-38mm |
| Max Speed | Up to 1600Pcs/Min | Up to 3200Pcs/Min |
| Printing Color | 2-4 color | 2-4 color |
| Printing Area | 24mm-34mm | 24mm-34mm |
| Air Consumption | 600L/Min | 600L/Min |
| Gas Consumption | 150L/Min | 150L/Min |
| Power | 3p 380v 50/60Hz | 3p 380v 50/60Hz |
| Air | 5-7 Bar | 5-7 Bar |
Configuration
- Plasma surface treatment(standrad condiguration is flame surface treatment)
- Bottle sorting machine
- Quanlity inspection machine
Applications
As a fully automatic dual-color UV offset printing device specialized for bottle caps, it boasts a broad application scope. It supports high-precision UV offset printing for various plastic bottle caps, covering:
Specifications & Sizes: PCO1881, PCO1810, 28mm, 38mm, etc.
Material Types: PP caps, PE caps, PET caps
Application Fields: Cosmetic caps, pharmaceutical caps, beverage caps
