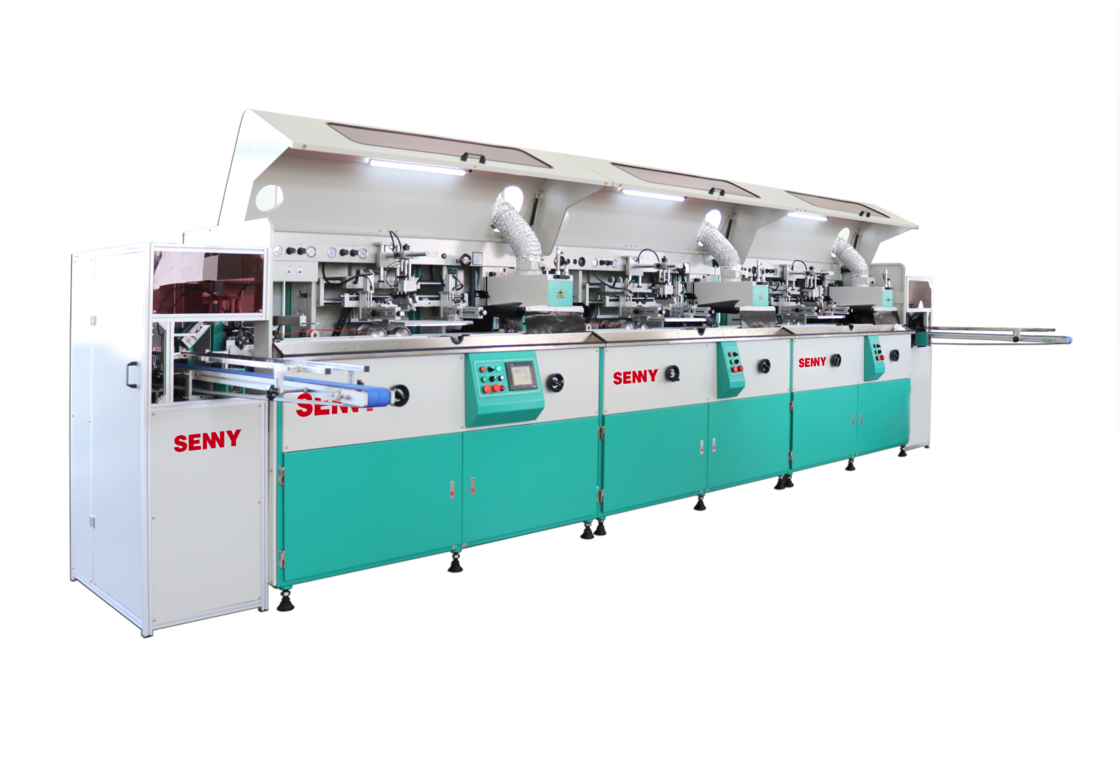

Automatic Linear Screen Printing Machine for Plastic Bottles with Plasma Surface Treatment and Labeling Function
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Senny |
| Certificazione: | CE |
| Numero di modello: | SL1666/SL1688 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1pc |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Avvolgimento cinematografico |
| Tempi di consegna: | 45 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 10 pezzi/mese |
|
Informazioni dettagliate |
|||
| Velocità: | Fino a 85pcs/minuto | Colore stampato: | 1-8 colori |
|---|---|---|---|
| Tipo di piastra: | macchina da stampa a schermo lineare | Grado automatico: | Automatico |
| Garanzia: | 1 anno | Marca: | SENNY |
| Termini di pagamento: | T/t | Imballaggi particolari: | Pacchetto compensato |
| Certificazione: | CE | ||
| Evidenziare: | 1-8 color bottle screen printer,high-speed bottle screen printer 85pcs/min,round oval square bottle screen printer |
||
Descrizione di prodotto
1-8 Color Bottle Screen Printer For Round Oval Square Plastic Bottles Up To 85pcs/Min
Machine Features
The machine is suitable for screen printing of various colors of UV ink, hot stamping, labeling and other decorations on round, oval, square and other shapes of plastic bottles.
The machine has perfect transmission design, stable running, fast changeover, easy operation and it meets CE certification.
The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
The machine uses a highly customizable modular structure, which can be connected in a straight line to be a 1-8 color printing machine.
The standard configuration of the machine is a screen printing and UV curing module, and the screen printing function can be selected to be interchangeable with hot stamping or labeling functions.
The machine can be chosen to connect with independent hot stamping, labeling, quality inspection and other modules to combine into a multi functional printing machine.
Optional Configuration
- Plasma surface treatment function.
- Hot stamping function.
- Labeling function.
- LED-UV curing function.
- Technical Parameters
Screen printing device UV curing
Machine parameters
| Machine Model | SL1666 |
SL1688
|
| Printing Speed |
Up to 85pcs/min
|
Up to 85pcs/min
|
| Printing Bottle Diameter |
20–100mm
|
20–100mm
|
| Oval Bottle | - |
25–250mm
|
| Oval/Flat Bottle width | - |
20–130mm
|
| Bottle Height |
50–300mm
|
50–300mm
|
| Max Printing Length |
300mm
|
300mm
|
| Max Printing Height |
250mm
|
250mm
|
