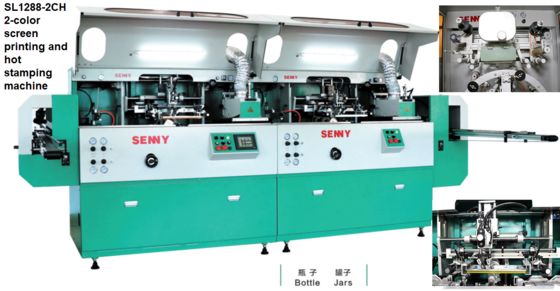

Plastic Bottle 1-8 Color 85 Pcs/Min Automatic UV Printing Machine
Dettagli:
| Luogo di origine: | Dongguan China |
| Marca: | SENNY |
| Certificazione: | CE SGS |
| Numero di modello: | SL1288 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1pc |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Pacchetto compensato |
| Tempi di consegna: | 45 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 10 pezzi/mese |
|
Informazioni dettagliate |
|||
| Nome modello: | SL1288 | Colore stampato: | 1-8 colore |
|---|---|---|---|
| Marca: | Senny | Garanzia: | 1 anno |
| Servizi post-vendita: | Video o on-line | Tipo di piastra: | stampatrice dello schermo |
| Evidenziare: | plastic bottle UV printing machine,automatic bottle screen printer,85 Pcs/Min UV printer |
||
Descrizione di prodotto
Plastic Bottle 1-8 Color 85 Pcs/Min Automatic UV Printing Machine
Machine Feature
- This machine is well-suited for decorating plastic bottles of varied shapes—round, oval, and square included—via processes such as multi-color UV ink screen printing, hot stamping, and labeling.
- It boasts a compact design that reduces floor space usage, along with fast changeover, easy operation, and strong cost-effectiveness.
- Fitted with electrical components from renowned brands, an easy-to-use touch screen, and a PLC control system, the machine ensures reliable performance.
- With its highly customizable modular structure, the machine can be connected in a straight line to form a 1-8 color printing device.
- The machine’s standard configuration includes a screen printing module and a UV curing module; if needed, the screen printing function can be replaced with hot stamping or labeling functions.
- Moreover, it can be combined with independent modules like hot stamping, labeling, and quality inspection units to build a multi-functional printing system.

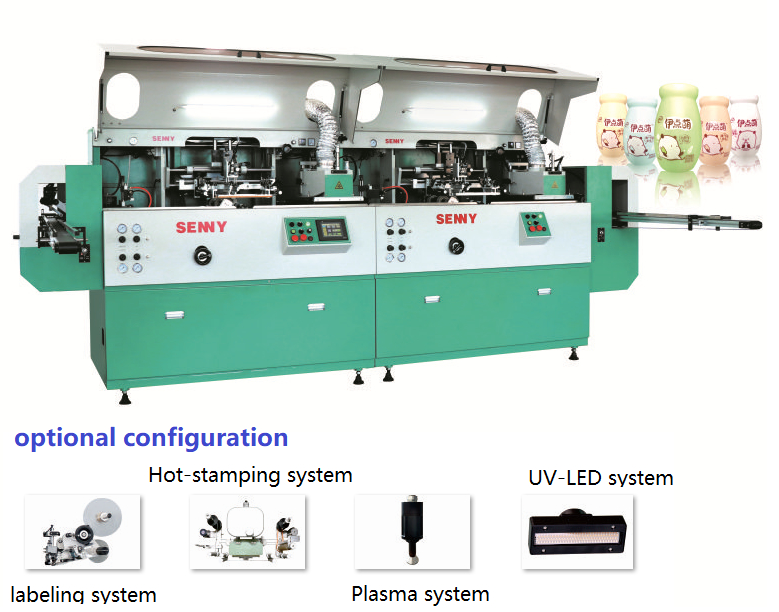

Optional Configuration
- Plasma surface treatment function.
- Hot stamping machine.
- Labeling function.
- LED-UV curing function.
Technical Parameters
| Machine Model | SL1288 |
| Printed Color | 1-8 |
| Max.speed | Up to 85 pcs/min |
| Round Bottle Diameter | 20-100mm |
| Oval Bottle Radius | 25-250mm |
| Oval/Flat Bottle Width | 20-110mm |
| Bottle Height | 50-280mm |
| Max.Printing Length | 250mm |
| Max.Printing Height | 200mm |
Printing your vision
About us:
Senny provides services for numerous industries, covering food, pharmaceuticals, toys, cosmetics, daily chemicals, electronics, and decorative products. By making use of advanced automatic printing technologies—including screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing—it achieves the printing of high-quality, delicate graphics and text on the surfaces of products with different shapes, which are made from materials such as plastic, metal, glass, and ceramics.
Since it was founded in 1994, Senny has always stuck to its business philosophy of offering high-grade products and services to customers. It adopts top-quality electrical control components and materials for R&D and manufacturing, and keeps improving the printing quality of various products to satisfy the growing market demands for high-standard packaging.
