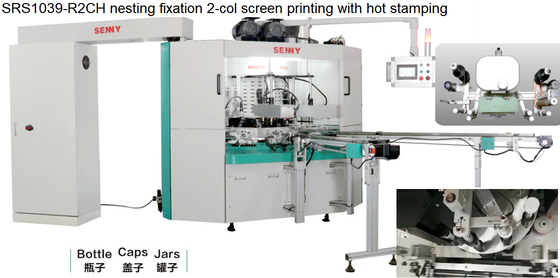

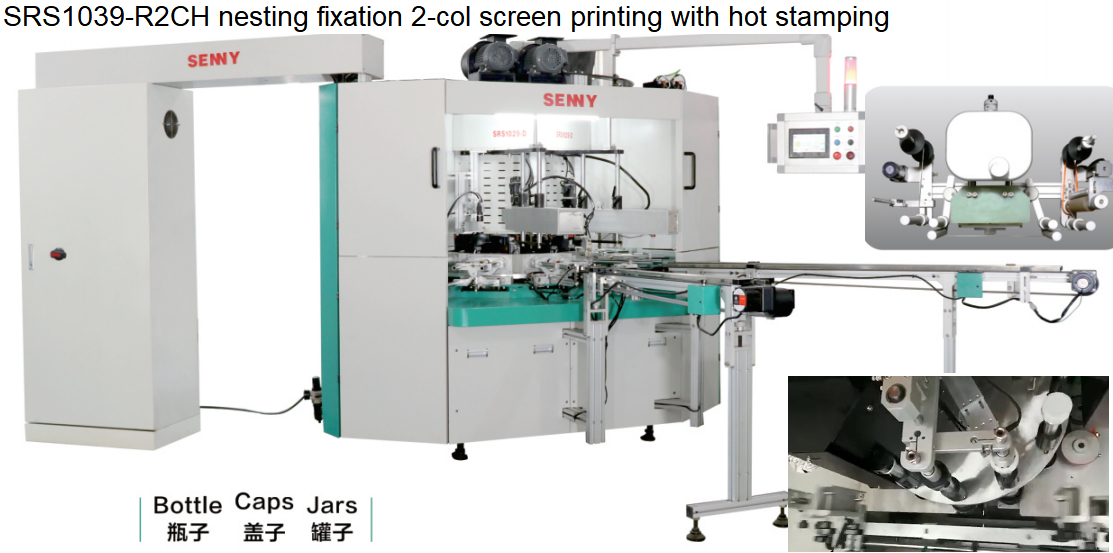

360 Degree Automatic Hot Stamping Machine 3000pcs/Hr Heat Foil Machine
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Senny |
| Certificazione: | CE SGS |
| Numero di modello: | SRS1039-D2CH |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1pc |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Pacchetto compensato |
| Tempi di consegna: | Un mese |
| Termini di pagamento: | T/t, l/c |
| Capacità di alimentazione: | 10 pezzi /mese |
|
Informazioni dettagliate |
|||
| Colore di stampa: | 3 colori | Condizione: | Nuovo |
|---|---|---|---|
| Stampa Durabilità: | Alta durata | Stazione: | 3 stazioni |
| Garanzia: | 1 anno | Servizio post-vendita: | Video o on-line |
| Dettagli del pacchetto: | Pacchetto compensato | Certificazione: | T/T |
| Capacità di alimentazione: | 5 pezzi/mese | ||
Descrizione di prodotto
360 Degree Automatic Hot Stamping Machine 3000pcs/Hr Heat Foil Machine
For The Screen Printing Machine, We Can Teach You:
1. How to make screen border
2. Select the mesh density according to the product
3. How to make squeegees and blades
4. Ink mixing
5. Installation of screen printing machine
6. Maintenance of screen printing machine
Product Features:
1. SRS1039-D2CH is designed for plastic round containers, the printing color can be designed from 1 to 3 colors according to customer's requirement, the hot stamping color is 1 color.
2. 360 degree screen printing and hot stamping.
3. Full servo drive screen printing and hot stamping.
4. Mechanical register, color-coded register and visual register functions.
5. Electronic UV system and non-polar dimming function (optional LED-UV curing system).
6. Touch screen display for easy man-machine dialog and complete warning system.
Technical Specifications:
| Max. printing area | 280 X 200mm |
| Min. cylindrical-container diameter | Φ25mm |
| Max. cylindrical-container diameter | Φ90mm |
| Max. width of elliptical and flat container | 120mm |
| Min. container height | 60mm |
| Max. container height | 260mm |
| Max. screen frame size | 450 X 250mm |
| Max. printing speed | 3000pcs/hr |

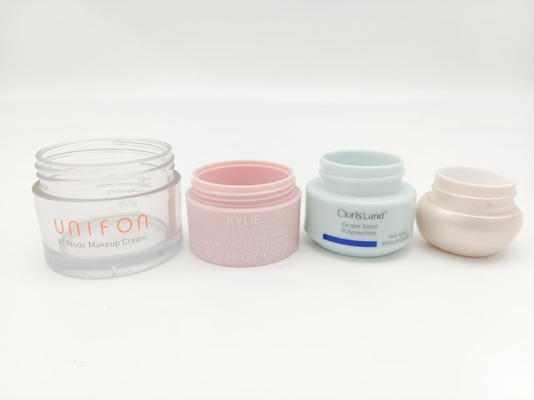

Printing samples
Optional Configuration
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
Customer's plant using our machine
