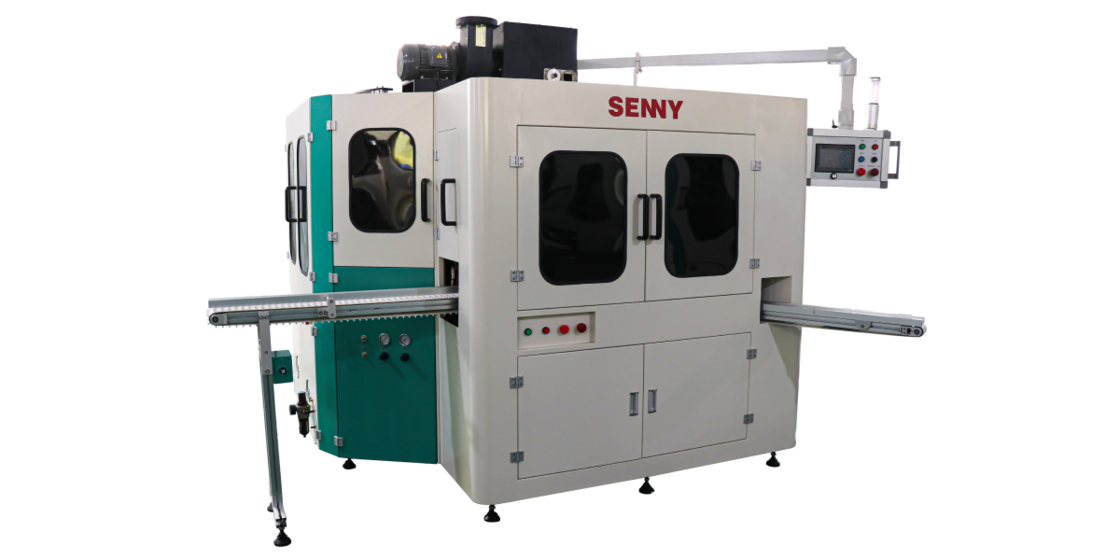

8-Color 85 Pcs/Min CNC Soft Tubes UV Screen Printing Machine
Dettagli:
| Luogo di origine: | Dongguan China |
| Marca: | SENNY |
| Certificazione: | CE SGS |
| Numero di modello: | SRS866 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1pc |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Pacchetto compensato |
| Tempi di consegna: | 45 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 10 pezzi/mese |
|
Informazioni dettagliate |
|||
| Tipo di piastra: | stampatrice dello schermo | Colore stampato: | 8 colori |
|---|---|---|---|
| Servizi post-vendita: | Video o on-line | Tempi di consegna: | 45 giorni |
Descrizione di prodotto
Machine Feature

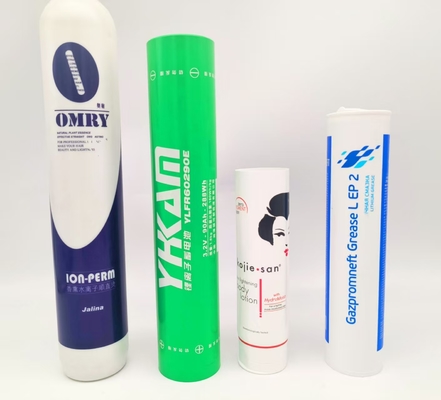

- This machine is suitable for decorating plastic soft tubes through processes such as multi-color UV ink screen printing, hot stamping, and varnishing.
- The SRS866 features an integrated turntable design—all printing functions are completed using the same set of fixtures, enabling printing accuracy as high as ±0.1mm.
- Driven by a digitally controlled servo motor, the SRS866 achieves 360-degree printing on products. It is also equipped with remote management and service capabilities, aligning with Industry 4.0 standards.
- In terms of performance and operation, the machine adopts electrical components from well-known brands and a PLC control system. It also supports user-friendly operation via a touch screen and wireless tablet, ensuring reliable overall performance.
Optional Configuration
Unscrambling & feeding machine. Hot stamping function. Plasma surface treatment function.
Visual registration function. LED-UV curing function. Finished product quality inspection function.
Technical Parameters
| Machine Model | SRS866 |
| Printing color | 1-8 color |
| Printing speed | Up to 85 pcs/min |
| Soft tube diameter | 13-80mm |
| Soft tube Height | 25-250mm |
| Max.Printing Length | 250mm |
| Max.Printing Height | 220mm |
| Printing Accuracy | ±0.1mm |
Printing your vision
