Fully Automatic Bottle Screen Printer with High Durability and AI Visual Inspection for Various Shapes
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Senny |
| Certificazione: | CE SGS |
| Numero di modello: | SRS829 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | negotiable |
| Imballaggi particolari: | Pacchetto compensato |
| Tempi di consegna: | Un mese |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 10 pezzi/mese |
|
Informazioni dettagliate |
|||
| Grado automatico: | Completamente automatico | Tipo di piastra: | Schermo stampante |
|---|---|---|---|
| Colori stampati: | 1-6 colori | Stampa Durabilità: | Alta durata |
| Garanzia: | 1 anno | Servizio post-vendita: | Video o on-line |
| Tempi di consegna: | 45 giorni | Termini di pagamento: | T/t |
| Dettagli del pacchetto: | Pacchetto compensato | Certificazione: | CE SGS |
| Evidenziare: | CNC mini bottle screen printer,dimension jars screen printing machine,high-speed 55pcs/min screen printer |
||
Descrizione di prodotto

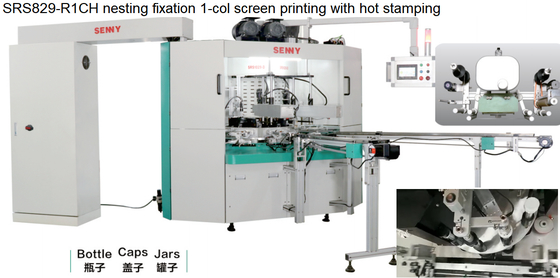

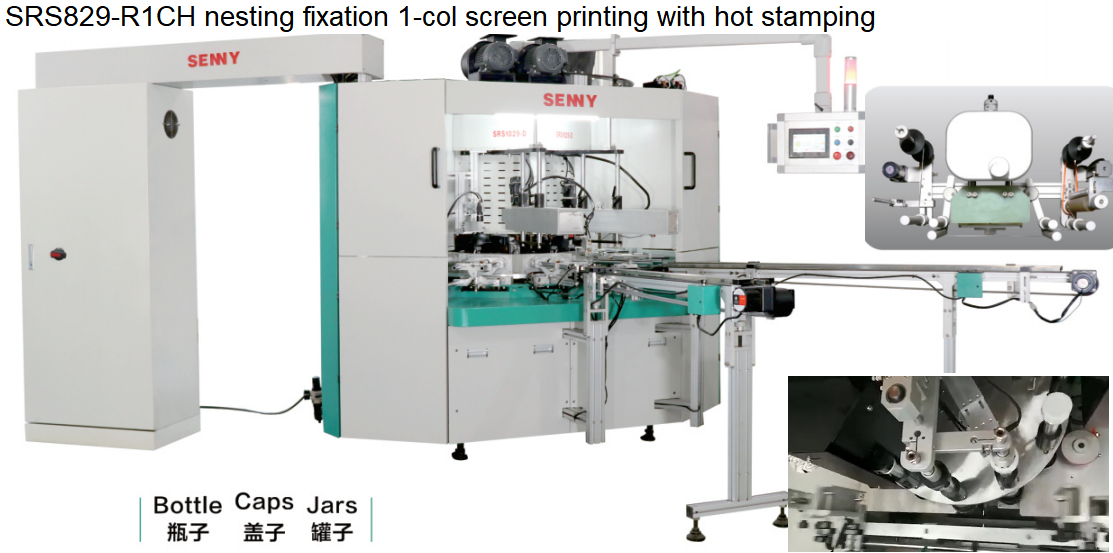

CNC Mini Dimension Bottles And Jars Screen Printer For Various Shapes 55pcs/Min
Product features:
This machine is suitable for printing UV inks of various colors on plastic, metal, glass, ceramic bottles and cans of various shapes.
The machine adopts digital control servo drive to complete various functions and printing, which can easily realize 360 degree printing for various shapes of products.Addressing the pain points of printing on irregularly shaped products, this system can drive the printing components and products to make synchronous dynamic adjustments, easily realizing 360° full-circumferential printing.
The machine adopts integrated turntable structure, the products are rotated to different stations in one fixture to realize the functions of feeding, positioning, surface treatment, printing, curing and discharging. The products are not easy to grind and the printing accuracy is up to ±0.1mm.
The machine can be connected with hot stamping or labeling module to become a multifunctional printing line of screen printing plus hot stamping or labeling.
The machine can be installed with finished product inspection function to divert unqualified products instead of manual inspection.Equipped with an AI visual inspection system, it automatically captures images of printed products through a high-definition camera, automatically identifying defects such as pattern deviation, missing printing, color difference, and bubbles with an identification accuracy of 99.8%. Unqualified products are automatically diverted to the waste area through a pneumatic sorting device, replacing traditional manual visual inspection.
Feeding conveyor can be directly connected with bottle making equipment or with automatic bottle trimmer to replace manual feeding.
After printing, the discharge can be connected to bagging machine instead of manual bagging.
Technical Specifications:
| Specification/Model | SRS829 | SRS1039 | SRS1249 | SRS1669 |
| Station | 8 | 10 | 12 | 16 |
| Printing Color | 2 | 3 | 4 | 6 |
| Printing Speed | Up to 55pcs/min |
| Diameter of 360° | 13–65mm |
| Height of bottle | 20–220mm |
| Printing length | 200mm |
| Printing height | 120m |
Applications:
The printing scope is specialized in lid and can products, and it can be used for UV screen printing of various lids and cans such as plastic lids, metal lids, glass cans, ceramic jars, aluminum pop-top can lids, and tinplate food cans.
Printing sample
About us:
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
