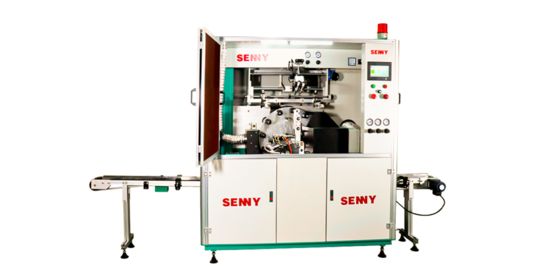

Customizable Caps Printing Machine with UV Curing System and Surface Treatment System
Round Jar & Cap printing machine.pdf
Machine Features:
Automatic Feeding System
The machine can be installed according to the customer's needs and is equipped with a variety of automatic feeding systems, such as vibrating trays and rotary feeders.
Surface Treatment System
The machine can be installed with surface treatment system separately according to customers' needs, which can effectively solve the surface treatment problems of various plastic products, easy to operate and meet different needs.
Plastic products generally need surface treatment before printing to destroy the molecular structure of the surface and enhance the adhesion of the printed pattern; there are two kinds of surface treatment processes, one is flame treatment and the other is corona treatment.
No Part No Print System and Adjustable Printing Head System
If the machine realizes that there is no product on the transfer, the printing system will not work when the fixture reaches the printing position.
Depending on the product, the printing head stroke and the angle of the initial printing action can be adjusted to achieve the best printing results.
UV Curing system / LED Curing system
Customers can choose different curing systems according to their needs.
UV curing technology is mature, low lamp replacement cost, low maintenance cost.
Compared with traditional high-pressure mercury lamps, LED curing is characterized by soft light output, long life, energy saving, safety and environmental protection, wide irradiation area, small space occupation, and uniform light spot, etc. However, its disadvantage is the high maintenance and replacement cost.
Machine Application:

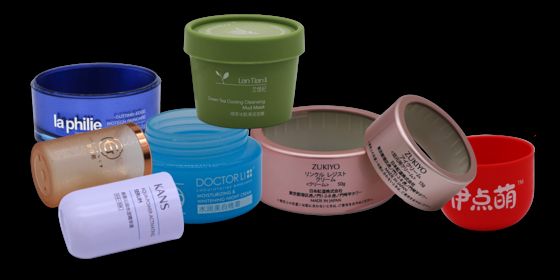

This machine is suitable for screen printing UV inks of various colors on the surface of round cans, round bottles and other products, and can easily handle the printing needs of round containers made of different materials (such as plastic, metal, glass, etc.).
The equipment adopts an integrated turntable design, integrating multiple functions such as feeding, positioning, printing and curing to form a coherent operation process. It is not only easy to operate, allowing operators to quickly master the usage method, but also greatly improves production continuity.
In terms of core configuration, the machine selects electrical components from well-known brands, combined with a stable and reliable PLC control system and an easy-to-operate touch screen. It not only has stable operation performance, which can effectively reduce downtime due to faults, but also makes operations such as parameter setting and operation monitoring more intuitive and efficient, providing a strong guarantee for continuous and stable production.
Machine Parameters:
| Model | SR818 | SR818-3S |
| Work Station | 8 | 8 |
| Printing Speed | Up to 50pcs/min | Up to 60pcs/min |
| Product Diameter | 20-80mm | 20-80mm |
| Product Height | 20-60mm | 20-200mm |
| Max Printing Length | 250mm | 250mm |
| Max Printing Height | 60mm | 160mm |
Applications
SR818 Round Can and Lid Screen Printing Machine is a semi-automatic screen printing machine for round cans and lids. It has a quite wide printing range and can be used for screen printing of various round cans and lids, such as tinplate round cans, plastic round lids, aluminum alloy round lids, glass round cans, etc.
